SOLAR WATER HEATER

SOLAR WATER HEATER

BRAND: SOLARIZER

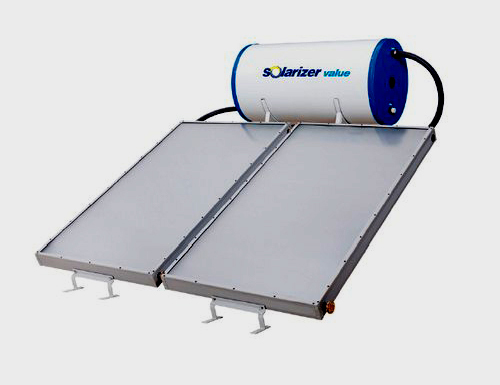

MODEL: SOLARIZER VALUE

TECHNICAL DETAILS:

Model: Solarizer value
Available Size: 100-500 Lpd
Insulation: CFC free PUF
Material: Mild steel

Material of storage tank: Glass enamel coated

ABOUT THIS ITEM:

  • Size Measurement Required: (North to South and East to West) : NS:2240mm X EW:2100mm
  • Used for Soft water and Non pressurised application
  • Quality tank and collectors
  • Flat Plate Collector with Copper pipes,
  • Material Type: Mild steel

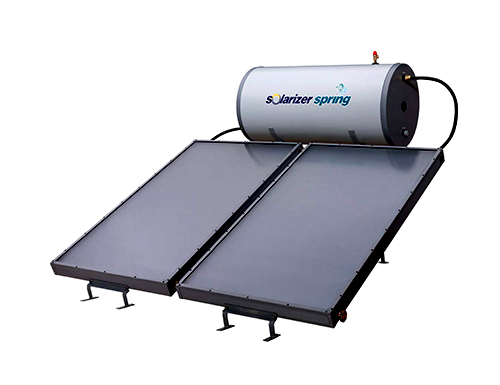

MODEL: SOLARIZER SPRING PR

TECHNICAL DETAILS:

Model: Solarizer Spring Pr
Available Size: 200-500 Lpd
Tank Material: Stainless Steel
Type of Collector: Flat Plate Collector (FPC)
Frame Material: Aluminium
System Temperature: 60 to 85 Degree Celsius

Maximum Working Pressure: 6 bar for pressurised system

ABOUT THIS ITEM:

  • Size Measurement Required: (North to South and East to West) : NS:2205mm X EW:2100mm
  • Used for Medium hardwater & Pressurised appilcation
  • Best heating performance, Flat Plate Collector with Copper pipes, Glass Enamel coated tanks, It is suitable for all modern bathing systems.
  • Highest quality design
  • Material Type: Mild steel

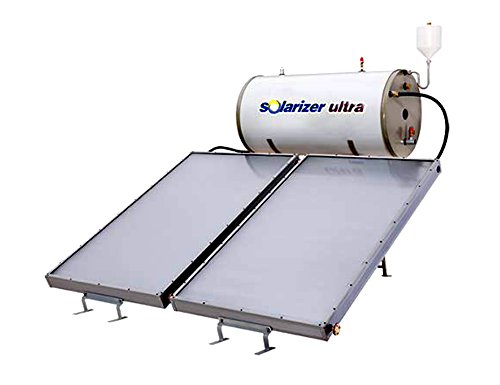

MODEL: SOLARIZER ULTRA

TECHNICAL DETAILS:

Model: Solarizer Ultra
Available Size: 100-500 Lpd
Type of Collector: Flat Plate Collector (FPC)
Tank Material: Mild steel
Frame Material: Aluminium

ABOUT THIS ITEM:

  • Size Measurement Required: (North to South and East to West) : NS:2205mm X EW:1040mm
  • Used for extreme Hardwater, Non pressurised appilcation, It is a Indiret Heating system
  • Flat Plate Collector with Copper Tubes, Extreme performance under hard water,Corrosion-free system,Zero Blockages.
  • Most efficient heating performance
  • Material Type: Low carbon steel with Glass Enamel coating

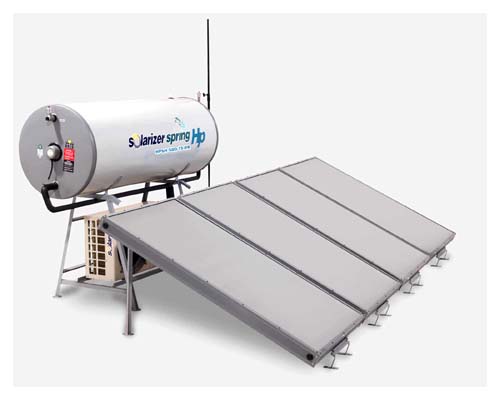

MODEL: SOLARIZER 200-500 LPD

ABOUT THIS ITEM:

  • Glass Enamel Coated
  • Air Source Single Phase
  • 16m2 per collector

TECHNICAL DETAILS:

Model: Solarizer 500 LPD
Available Size : 200-500 Lpd
Tank Capacity : 500 Litres(horizontal)
Heat Pump : 13 Kw (Input)*
Voltage : 230 V / 50 Hz
Tank Insulation : 50 mm PUF
Anode : Magenesium (Mg)
Outer Cladding : Pre Coated Steel
Presuurized
Safety Valve : 6 Bar
Heat Pump To tank
Interconnecting Pipe : CPVC (Suitable For Hot Water)
Solar panel to tank
Interconnect : Composite Pipe With Brass Fittings
Water Quality : TDS 2500 Mg/L
Solar panel : 4



MODEL: Solarizer 200 LPD

BRAND: NUETECH SOLAR SYSTEMS

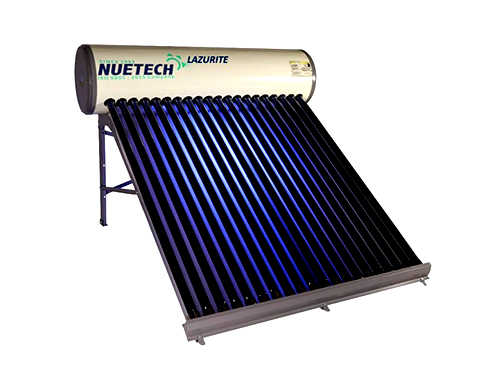

MODEL: NUETECH LAZURITE

TECHNICAL DETAILS:

Model: Nuetech Lazurite
Available Size: 100-500 Lpd
Tank Material: GI
Number of Tubes: 20
Evacuated Tube Size: 1800 mm length , 58 mm diameter

ABOUT THIS ITEM:

  • special Galvanized Iron Inner Tank Suitable for Hard Water.
  • Turbo Coating at Weld Joints for Corrosion – Free long life.
  • Air Vent Model for Maintenance Free operation.
  • Suitable for hard water, Three Layer Copper Solar Evacuated Tubes.
  • Extraordinary Corrosion – Free Powder coated Galvanized Steel support stand.
  • Electrical back up for cloudy whether.
  • Special design supported stand on galvanized steel with powder coating.

MODEL: NUETECH GLASS LINE TECHNOLGY

ABOUT THIS ITEM:

  • High quality Germen frit, Blue Glass enamel coating tanks.
  • Evacuated 3 T gold tubes keep heat absorption capacity with heigh performance.
  • Heigh density PUF insulated tanks.
  • Pure Polyester coating on Galvanised steel for supporting structure.
  • Cleaning holes provision in tanks for easy maintenance.

TECHNICAL DETAILS:

Model: Nuetech Glass Line

Tank Material: Blue glass enamel coating applied to the inner tanks of their solar water heaters

Type of Collector : ETC

System Capacity (precisely) : 120,170,220,320 & 500 LPD

Inner tank Materials : 1.6 mm,low carbon TATA Steel

Inner tank Protection coating : Food grade Enamel Glass lined with 200 TO 250 Micron thickness.

Puff Density : 40 Kg/Mt³

ETC Tubes : Ø 58 X 2100 mm, Boro silicate Glass tubes with 0.92 Absorbity

Puff Insulation : Polyurathene Foam, CFC FREE.

Special Feature : Digital controller with 24×7 Hot water.

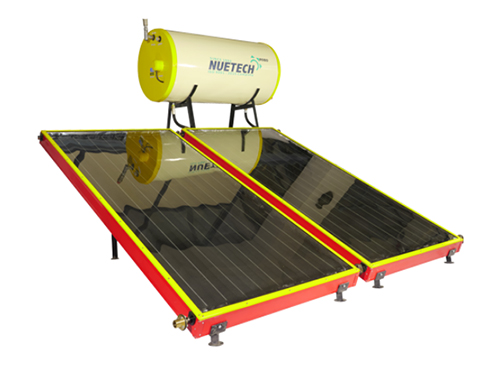

MODEL: NUETECH ROBO

TECHNICAL DETAILS:

Model: Nuetech Robo
Available Size: 200-500 Lpd
Tank Material: Mild Steel
Type Of Collector: Flat Plate Collector (FPC)

ABOUT THIS ITEM:

  • Suitable for Hydro-pneumatic Pressurizes Applications at 5 kg/cm.
  • Flat Plate collector ( FPC) Technology as per BIS Standards.
  • Hi-Efficiency Copper Absorber.
  • Suitable for Hard water.
  • Hi-Absorptivity Solar Grade Textured Toughened Glass.
    Special, Strong Epoxy-Coated M.S.inner Tanks.coating.

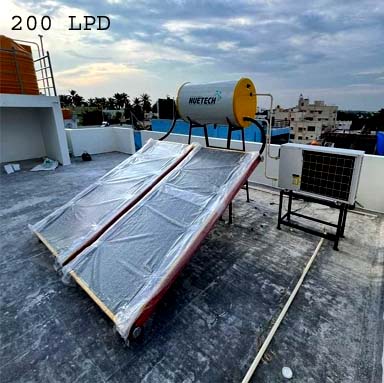

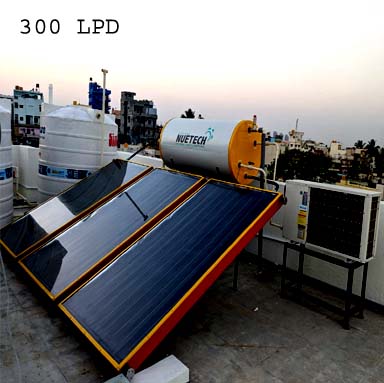

MODEL: NUETECH SOLAR INTEGRATED HEAT PUMP

TECHNICAL DETAILS:

  • Type: Solar-Integrated Heat Pump / Solar Thermal Heat Pump.
  • Capacities: 200L, 300L, and larger commercial units available.
  • Compressor: Panasonic.
  • Refrigerant: R410A (for domestic models), R407C (for larger models).
  • Power Input: Around 3kW (e.g., for 200L model) up to 11.5kW for larger systems.
  • Heating Output: Up to 80°C (system capable) or rated up to 55°C (in brochure).
  • Efficiency (COP): High, around 3.8 to 4.06 (Coefficient of Performance).
  • Tank: Enamel-coated, food-grade, corrosion-resistant, suitable for hard water, with PUF insulation.
  • Control: Digital controller, often with mobile app integration for settings and monitoring.
  • Performance: Works in all weather (night, rain, snow, cloudy days).

ABOUT THIS ITEM:

  • Hybrid Technology
  • 24/7 Hot Water:
  • High Energy Efficiency
  • Weather Independent:
  • Smart Controls:
  • Electrical Backup:
  • Eco-Friendly:

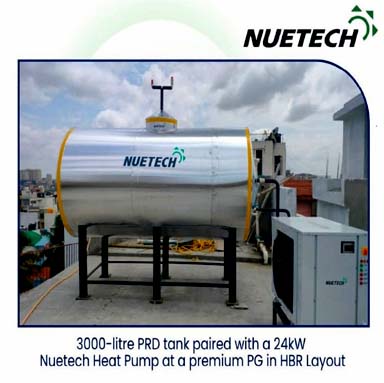

MODEL: NUETECH COMMERCIAL HEAT PUMP

ABOUT THIS ITEM:

  • Safety: Complete isolation between water and electricity.
  • Save 70% energy costs: Utilizes the heat pump principle, absorbing heat from outdoor air to generate hot water.
  • Automatic start-up and shutdown.
  • Easy Operation: User-friendly Digital LCD display
  • All-Weather Performance: Functions flawlessly in ambient temperatures ranging from -30 to 43℃,
  • Heat pump storage tanks are corrosion resistance, made of enamel coated tanks

TECHNICAL DETAILS:

  • Energy Efficiency: Saves up to 70% energy costs.
  • Capacity: Ranges from 200L to 1000L+.
  • Temperature: Delivers hot water up to 80°C.
  • Compressor: Uses Panasonic compressors (in some models).
  • Tank: Enamel-coated, corrosion-resistant tanks for hard water (up to 2000 PPM TDS).
  • Operation: All-weather performance (-30°C to 43°C) with auto start/stop.
  • Control: Digital LCD display for time/temp settings, some with mobile app integration.
  • Type: Air-Source Heat Pumps (ASHP).
  • Voltage: Available in 220V and 380V.
  • Integration: Can be integrated with solar water heaters.

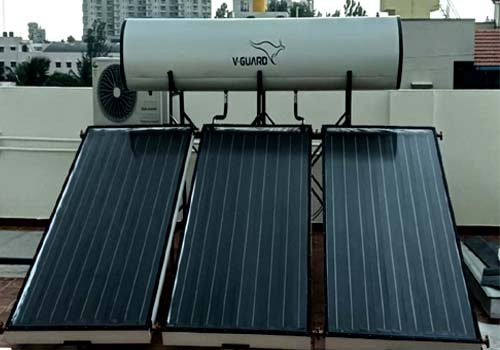

MODEL: 300 LPD FPC PRESSURIZED

TECHNICAL DETAILS:

  • Capacity: 300 Litres Per Day (LPD).
  • Ideal For: 6-9 persons.
  • Collector Type: Flat Plate Collector (FPC).
  • Collector Panels: 3 Panels.
  • Backup: Optional Electrical Backup Coil.
  • Inner Tank Material: Mild Steel with Glass Lined Coating (GL).
  • Inner Tank Thickness: 3.0 mm.
  • Outer Tank Material: Pre-coated GI Sheet.
  • Pressure Handling: Up to 8 bar (suitable for high pressure).
  • Hardness Tolerance: Up to 600 ppm (better for harder water).
  • Protection: Sacrificial Anode Rod.

ABOUT THIS ITEM:

  • High Pressure
  • FPC Technology
  • Durable Tank
  • Hard Water Friendly
  • Eco-Friendly
  • User Capacity
  • Backup Heater

MODEL: 200 LPD PRESSURIZED WITH HEATING SYSTEM

TECHNICAL DETAILS:

  • Capacity: 200 Litres Per Day (LPD).
  • Pressure Rating: Max 8 bar / 8 kg/cm².
  • Inner Tank: Stainless Steel 304L Grade (Food Grade), often 3.0mm thick.
  • Outer Tank: Aluminium Stucco Sheet or Pre-coated GI Sheet.
  • Insulation: High-Density Polyurethane Foam (PUF) for minimal heat loss.
  • Collector Type: Evacuated Tube Collector (ETC) or Flat Plate Collector (FPC) with AlN-SS-Cu coating.
  • Stand: Mild Steel with Black Powder Coating.
  • Corrosion Protection: Sacrificial Anode Rod.
  • Backup Heater: ISI marked Electric Backup Coil (Optional).
  • Water Hardness: Handles up to 600 ppm.
  • Suitability: Ideal for families of 4-5 people.

ABOUT THIS ITEM:

  • High-Pressure Design
  • Energy Efficient
  • Durable Tank
  • Excellent Insulation
  • Electric Backup (Optional)
  • High Hardness Tolerance
    Suitable Capacity

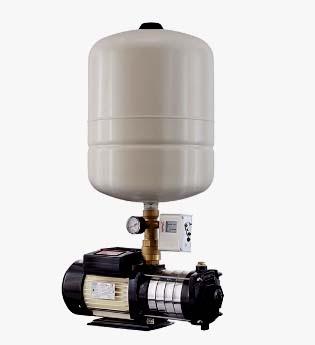

MODEL: PRESSURE BOOSTER DOMESTIC PUMP - VB 24 SERIES

TECHNICAL DETAILS:

  • Power: 0.37kW (0.5 HP) to 1 HP.
  • Voltage: 180-240V AC, Single Phase, 50Hz.
  • Speed: 2800 RPM.
  • Flow Rate: Varies by model (e.g., 550-2200 LPH for some).
  • Total Head: Up to 36m (118 ft).
  • Duty: Continuous (S1).
  • Insulation Class: F.
  • Max Liquid Temp: 40°C.
  • Max Ambient Temp: 35°C.

ABOUT THIS ITEM:

  • Motor & Winding: High-efficiency V-Guard induction motor, TEFC (Totally Enclosed Fan Cooled), Capacitor Start & Run, using 99.99% pure copper wire.
  • Protection: Built-in Thermal Overload Protector (TOP) prevents motor burnout.
  • Construction: Aluminium motor body, high-quality alloy steel shaft, SS304 (Stainless Steel) impeller and diffuser for durability.
  • Bearings: Double-sealed ball bearings with life lubrication for smooth, long-lasting operation.
  • Insulation: Class ‘B’ insulation for electrical safety.
  • Performance: Offers high pressure (up to 10 Bar) and operates on single-phase power (230V).
  • Tank: Often comes with a 24L storage tank for consistent pressure.
  •

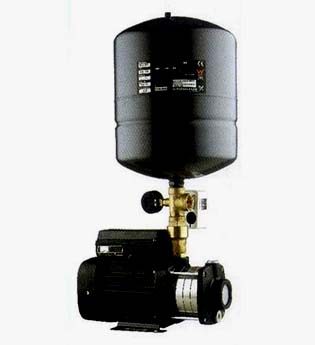

MODEL: GRUNDFOS PRESSURE BOOSTER PUMP- CMB

General Specifications (Model Dependent)
Application: Domestic water supply, light commercial, boosting pressure for showers/bathrooms (3-4).


Components: Integrated pump, pressure tank (e.g., 24L), pressure gauge, pressure switch, 5-way connector, check valve.
Protection: Dry-running protection, motor protection.
Ease of Use: Compact design, easy installation, user-friendly controls.


Example Electrical Specifications (Vary by Model)
Voltage: 1 x 220-240 V.
Frequency: 50 Hz.
Rated Power (P2): e.g., 0.5 kW (CMB 3-27) or 0.9 HP/0.67 kW (CMB 5-37).
Rated Speed: Around 2750-2800 rpm.
Current: Varies (e.g., 3.3-3.15 A for 3-27 model).
Insulation Class: IEC 85 (example).
Enclosure Class: IP55 (example).


Example Performance (CMB 5-46)
Power: 1.2 HP (0.9 kW).
Head (Mtr): ~45.5m @ 16.6 LPM; ~41.5m @ 50 LPM.
Key Model Examples
CMB 3-27: 0.5 kW, 1×220-230V, ~2750 rpm.
CMB 5-37: 0.9 HP/0.67 kW, 1×220-240V, ~2720-2800 rpm, 24L tank, suitable for 3-4 baths.
CMB 5-46: 1.2 HP, 1P, includes 24L tank, for ~3 bathrooms.
To get exact specs, use the Grundfos Product Center and input the specific model number (e.g., CMB 3-27 A-C-A-P-A-A).

ABOUT THIS ITEM:

  • Automatic Operation: The pump system includes a pressure switch and often an integrated pressure tank (CMB PT) or pressure manager (CMB PM) that automatically starts and stops the pump based on water demand, ensuring a consistent water supply.
  • Durable Construction: The pump components, including the shaft, impellers, and pump housing, are made of high-quality, corrosion-resistant stainless steel and composite materials, ensuring long-lasting operation and reliability.
  • Compact & Quiet Design: The modular and compact design makes the system easy to install in tight spaces. It also operates with low noise levels, typically below 55 dB(A) for certain models, which increases comfort in residential areas.
  • Dry-Running Protection: Built-in protective features automatically stop the pump if it runs dry (lack of water), preventing damage to the motor and extending the pump’s lifespan.
  • Versatility: The CMB series is available in various motor powers (0.4 HP to 1.2 HP or higher) and tank capacities (24 Lts, 60 Lts), making it suitable for a wide range of applications, from single-family homes to small hotels and irrigation systems.
  • Energy Efficiency: The pump is designed for efficient operation, with some models (CMBE series) featuring Variable Frequency Drives (VFD) for intelligent speed control, which matches power consumption to water output needs, resulting in lower running costs.
  • Easy Installation: The systems are largely “plug and pump” once connected to the pipework, simplifying the setup process for the user.
  • Multistage Centrifugal Pump: The core CM pump uses a horizontal multistage centrifugal design, which is efficient and delivers reliable performance for consistent water pressure.
  •

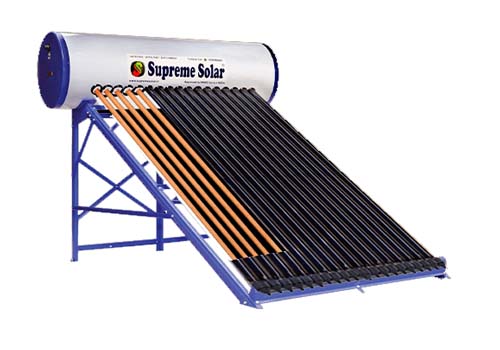

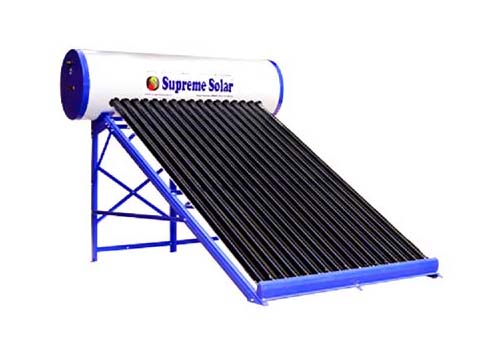

MODEL: 220 LPD ETC NON PRESSURIZED

TECHNICAL DETAILS:

Model : Supreme 220 LPD GLC
Capacity : 220 LPD/Liters
Circulation Type : Thermosyphon
Coating Porcelain Enamel : Glass lined
Maximum Water Hardness : 1000 ppm
No. Of Tubes : 17
Pressure : 1 bar
Product Certification : MNRE Approved ISO 9001:2000
Space Required : 2*2.5 (W*L)
Tank Insulation : PUF- 50 mm(Polyurethane Foam)
Tube length : 2100 mm
Tube Size : 58 mm
Type : Evacuated Tube Collector (ETC)

ABOUT THIS ITEM:

    • For family of 4-5 person
    • Warranty : 10 Years (on-Tank)
    • Tank Volume- 220 LPD
    • Inner Tank material- Galvanised Iron with Glass Lined Coating
    • Inner Tank Thickness : 2.5 mm with Glass Line Coating
    • Outer Tank  Material – Galvanized Power coated
    • No of tubes -17
    • Can handle upto 4000 ppm of water hardness



    • Space available on terrace should be minimum :  8 feet x 4 feet
    • Overhead Tank/Synatx should be placed minimum 6 feet higher from the terrace
    • If you have booster pump on terrace , this product is not

MODEL: 220 LPD FPC GLASSLINE PRESSURIZED

TECHNICAL DETAILS:

Model :  220 LPD FPC GLASSLINE PRESSURIZED
Capacity: 220 LPD/Liters
Circulation Type: Thermosyphon
Inner Tank Diameter; 210mm
Inner Tank Material: Enamel Steel of 2.5 mm with the Glass Lined Coating
Max Operating Pressure: 3 bar
Maximum Water Hardness: 600 ppm
Number Of Panel: 2
Outer Tank Diameter: 550mm
Outer Tank Material: Powder Coated
Panel Size: 2*1 meter
Pressure: High Pressure
Product Certification: BIS, MNRE Approved
Space Required : 2×2.5m (W*L)
Tank Insulation : PUF- 50 mm (Polyurethane Foam)
Type : Flat Plate Collector (FPC)
