UPS & BATTERIES

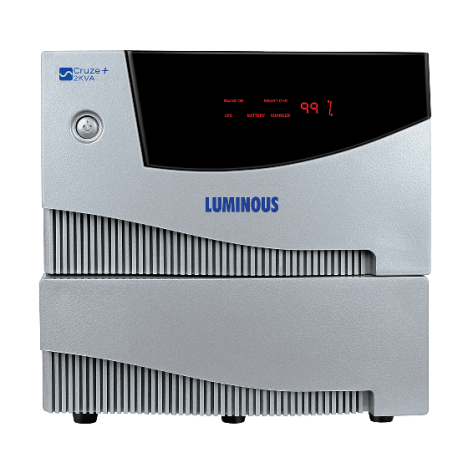

MODEL: LUMINOUS CRUZE - 2250
GENERAL FEATURES:
Brand:LUMINOUS
Model Number: Cruze 2 KVA
Battery Included: No
Back Up Time: 12 hrs
Load Options: 5 CFL, 5 Tube light ,
5 Ceiling Fan, 2 Television, 1 Refrigerator
Type: Pure Sine Wave Inverter
Model Name: Cruze 2 KVA Pure Sine Wave
Mode Type: Cruze 2 KVA
Material: Metal and Plastic
Fixture Type: Table
Technology Used: Unique DSP design
Solar Power Compatible: No
Switch Type: Push
INPUT FEATURES:
Efficiency: 99%
Output Voltage: 180V – 230 V
Output Frequency: 50Hz
Overload: YES
Output Power: 1680 W
Change Over Time: 5 ms
Surge Rating: 2000 VA
BATTERY FEATURES:
Battery Type: 150AH BATTERY 2 PCS
Recharge Time: 6
Number of Batteries: 2
Battery Voltage: 12V
Battery Capacity: 150AH
Replacement Battery: No
OUTPUT FEATURES:
Input Voltage: 110V -290V
Input Frequency: 50Hz
Low Cut Input Voltage: 100
Low Cut Recovery Input Voltage: 110
High Cut Input Voltage: 285
High Cut Recovery Input Voltage: 150

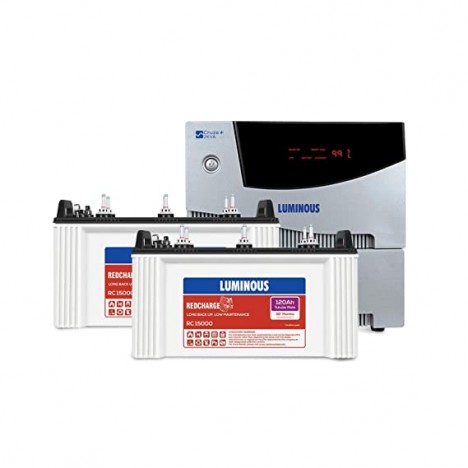

LUMINOUS CRUZE WITH BATTERY

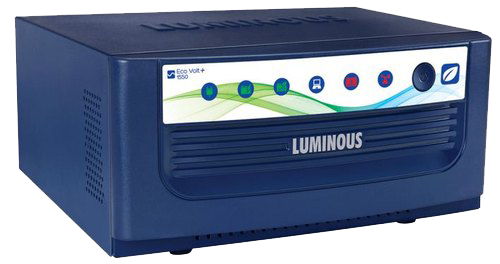

MODEL: LUMINOUS ECO VOLT
LUMINOUS ECOVOLT WITH BATTERY
GENERAL FEATURES:
Inverter Capacity : 12 Volt,
Capacity – 900 VA, Max. Bulb Load – 756 watt
Battery Capacity :Voltage: 12 Volt, Capacity – 150 Ah, Tall tubular inverter battery
Key feature for Inverter: Sine wave inverter, Fast battery charging with adaptive battery charging control technology
Key feature for Battery : Highly efficient and ideal for heavy duty application with excellent overcharge tolerance, superior performance during long and frequent power cuts and minimum maintenance
Running Load: 1 Fridge (250 Litre), 1 led TV 40″, 3 fan, 2 tubelight, 1 LED bulb
Safety: Overload protection with auto reset

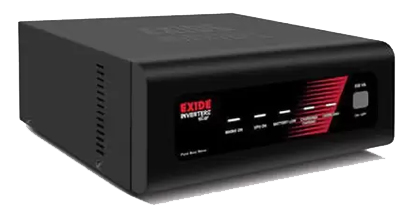

MODEL: EXIDE STAR
GENERAL FEATURES:
- Advance Microcontroller Based
- Pure Sine Wave Output Wave Shape Suitable for Mains Low Voltage Operation
- Wide Range of Mains Input Voltage for Battery Charging i.e. 90V – 300V AC
- LED Display for User Interface
- Dual Stage of Charging
- Auto Smart Protections
TECHNICAL SPECIFICATIONS:
- Output Voltage at No Load 220V ± 7V AC
- Output Frequency 50Hz ± 1Hz
- Output Wave Form Pure Sine Wave
- Nominal Battery Voltage 12V DC 24V DC
- Battery Low Cut Off 10.5V ± 0.2V DC 21.0V ± 0.4V DC

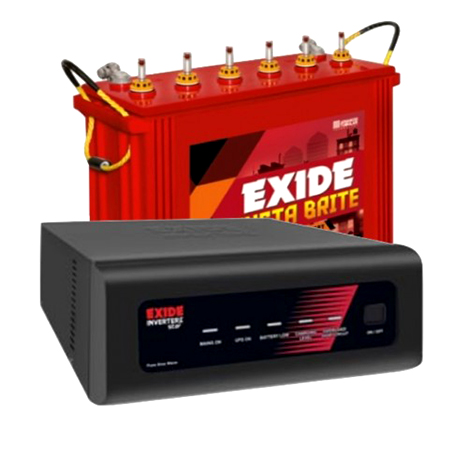

EXIDE WITH BATTERY

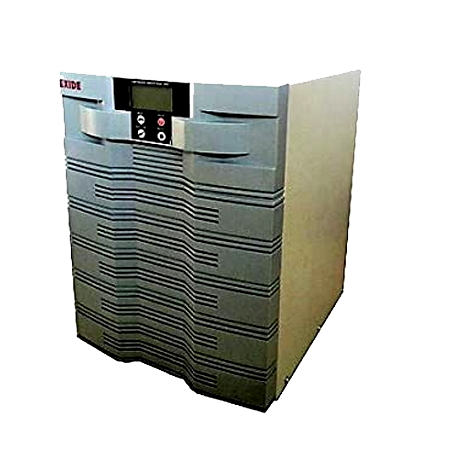

MODEL: EXIDE 2KV

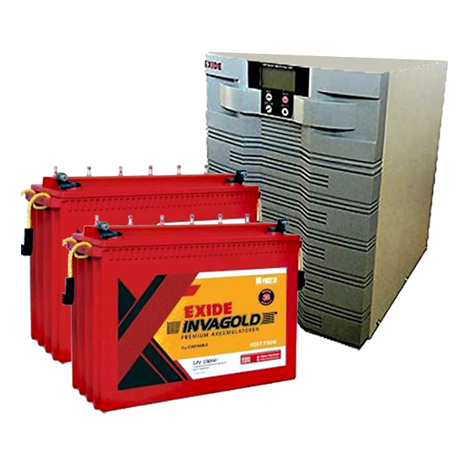

EXIDE 2kv WITH BATTERY
GENERAL FEATURES:
- Wide Mains Input Voltage Range 100V – 290V
- Controlled Output Voltage
- Suitable for Mains Low Voltage Operation, 8 – 10 AMP Charging at 120V Mains Input
- ASIC (Auto Sense Intelligent Control) technology for battery charging which automatically senses battery condition & adjusts the charging current accordingly
- Soft Touch ON/OFF, Mode Selection & Charging Selection Switch
- Smart In-built Protections – Overload, Short Circuit, AC Back Feed, Battery Low, Battery Over-Charge, Over Temperature etc.
- Mains Overload through Resettable Switch
TECHNICAL SPECIFICATIONS:
- Type: Satic UPS
- Back-up Mode
- Output Wave Form Pure Sine Wave
- No Load Output Voltage 220V ± 7V AC
- Output Frequency 50Hz ± 1Hz
- Battery Low Pre-Alarm 10.8V ± 0.2V / Battery (12V DC of each battery)
- Battery Low Cut-Off 10.5V ± 0.2V / Battery (12V DC of each battery)

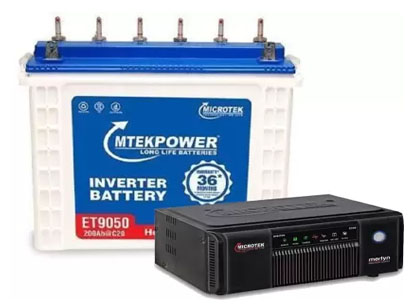

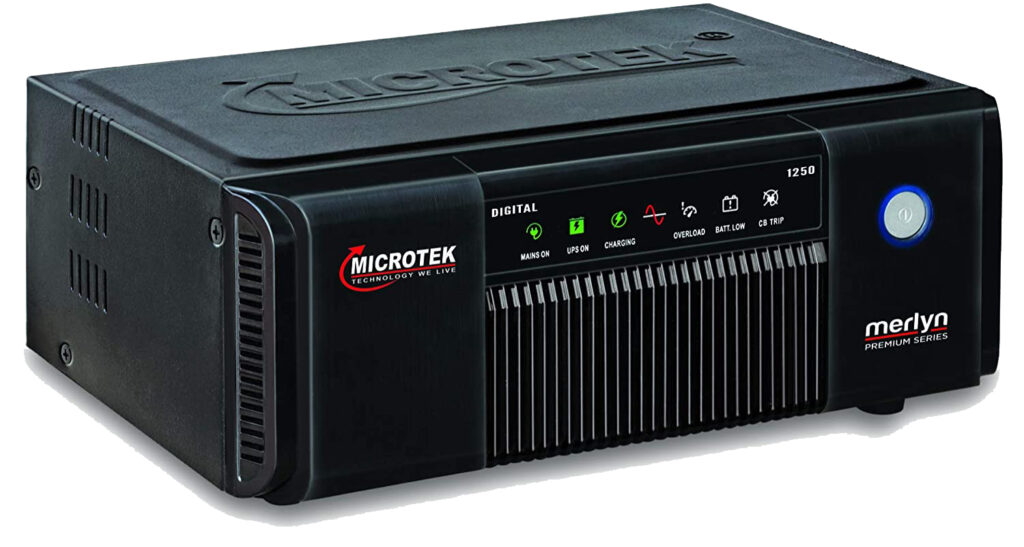

MODEL: MICROTECH -1250
GENERAL FEATURES:
- Micro controlled based Intelligent Control Design.
- Display Indications (Status & Fault).
- High Peak Current Handling Capability.
- High Voltage Surge Protection.
- Charging Mode, Load Type & Battery Type Selection Switches.
- Re-Settable Circuit Breaker.
- Smart Thermal Management Protection.
TECHNICAL SPECIFICATIONS:
OUTPUT
OUTPUT VOLTAGE (Main Mode) — Same as INPUT
OUTPUT VOLTAGE (UPS Mode) — 210V + 10%
OUTPUT FREQUENCY (UPS Mode) — 50 Hz ± 0.1 Hz
OUTPUT WAVE FROM (Main Mode) — Same as INPUT
OUTPUT WAVE FROM (UPS Mode) — Pure Sinewave
CHANGE-OVER
SWITCHOVER (Mains>UPS / UPS>Mains) — AUTOMATIC
UPS TRANSFER TIME — <15 msec
